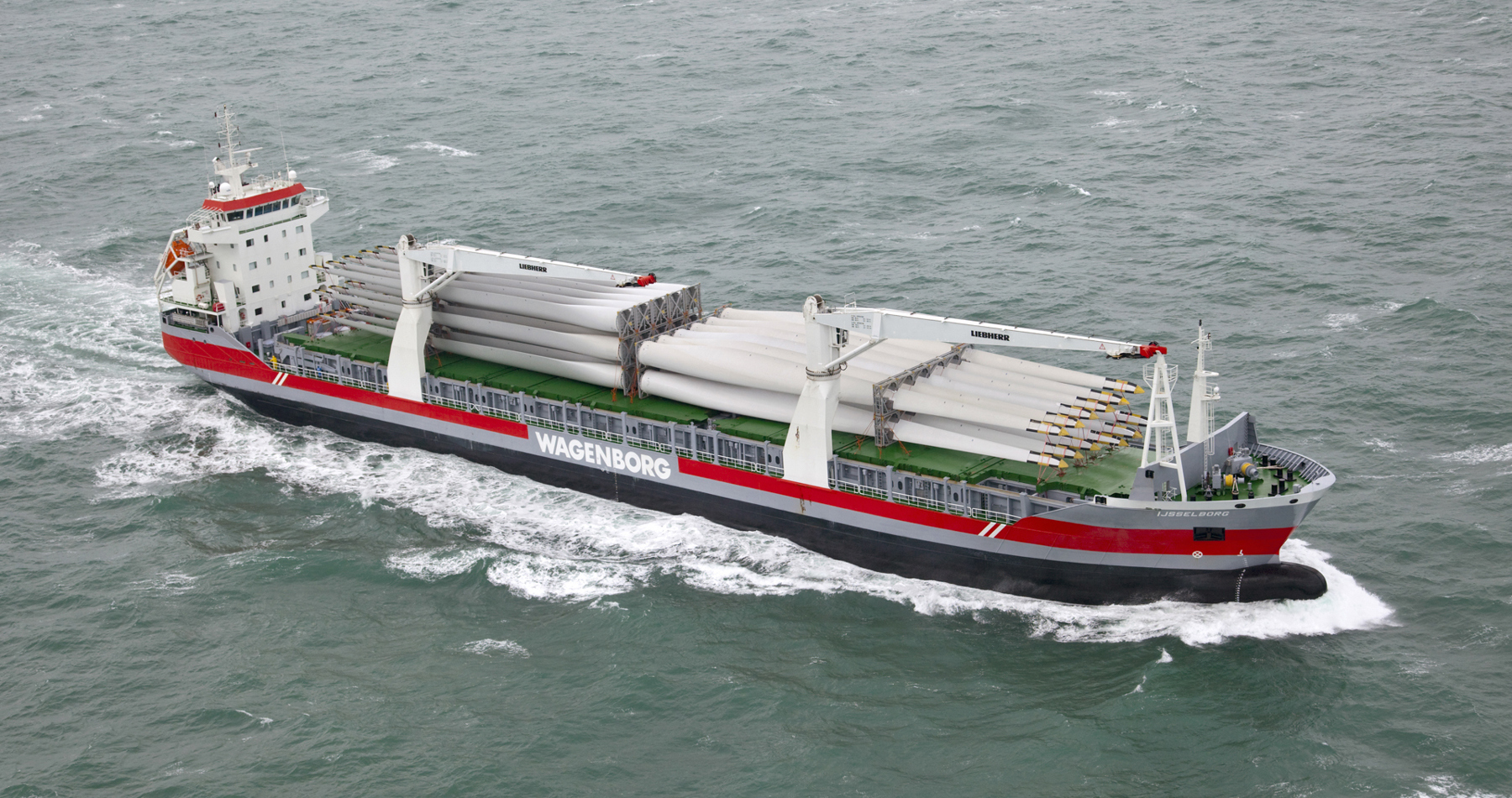

IJ-class

Cargo capacities

Holds/hatches

Hold #1

Hold #2

Electrical ventilaton

30 fold air changes per hour basis empty holds.
Both holds fitted with dehumidifier system

Tank capacities

Speed/consumption

2 Cranes fixed on starboard side -
each with a capacity of 80 mts at a reach of upto 14 m.
or capacity of 60 mts at a reach of upto 18 m
or capacity of 40 mts at a reach of upto 30 m
or capacity of 30 mts at a reach of upto 32 m.

The cranes can be combined up to 160 mts but not the entire holds/hatches can be served with this maximum lifting capaci
ty. Free distance between the cranes is abt. 50 meters.

Hoisting speed 80 mts SWL 68 mts SWL 40 mts SWL
Reeving 4 - fall 4 - fall 2 - fall
SWL 12 m per min. 18 m per min. 24 m per min.
Empty Hook 24 m per min. 24 m per min. 29 m per min.

Fuel oil specification

VLFSO 0,5% ISO 8217:2010. MGO DMA 0,1% ISO 8217:2010. Within emission controlled area(s) time charter to be liable for sulphur limit or emission compliance.

Engines
